Oil/Sediment separators shall be Rockford Separators as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans.
SPECIFICATIONS:
Furnish ____Rockford Model GOST-____-____-DW gallon integral storage compartment, all-welded double wall 1/4" steel separators, ____g.p.m. intermittent flow ____" (tapped) (hubbed) inlet and outlet, ____" tapped internal vent connection ____" adjustable oil draw-off, visible double-wall outside trap seal, non-removable separator screen with easily removable filter screen, removable 3/8" nonskid diamond tread-plate cover(s) for flush-with-floor installation for pedestrian traffic, or reinforced for ____ (light) (heavy) traffic, cover(s) secured with stainless steel flat head screws, extra-heavy leak-proof gasket. OPEX® Shop Coat coating (resistant to oil, grease and cutting oils) inside and bituminous coating outside.
OPTIONAL FEATURES:
Anchor flange, filter media, sediment basket, integral extension, acid-resistant epoxy coating, anodes, coalescing pack, high level sensor and alarm, with or without leak detection.
NOTE:
These are oil separators with double wall construction.
LARGER UNITS AVAILABLE
Call for specifications.
* Anchor flange requires 3" extension.
• 6" & larger – companion flange connection.
+ Length is the distance from inlet to outlet ends.
† Any smaller size storage compartment may be ordered P.O.A.
Example: GOST-5636 (Model No.) – 50 (Oil Storage)
Standard storage supplied unless specified otherwise.

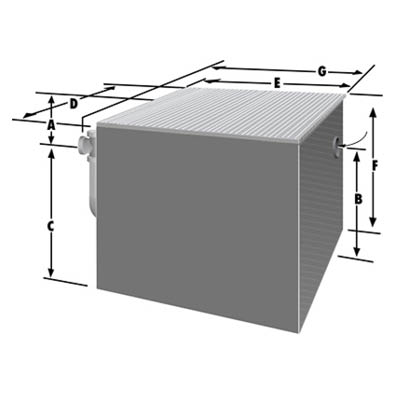

Model | Tapped Inlet and Outlet (in.) | Static Holding Capacity (gal.) | Oil Storage (gal.) | Sand Storage Holding Capacity (gal.) | Top to Center of Outlet A (in.) | Bottom to Center of Inlet B (in.) | Bottom to Center of Outlet C (in.) | Width D (in.) | Length E (in.) | Height F (in.) | Overall Length G + (in.) | Overall Bottom to Vent (in.) | Vent Size (in.) | Covers |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GOST-5624-50DW* | 2 | 45 | 50 | 71 | 4.5 | 27.25 | 27.25 | 46.5 | 41.75 | 31.75 | 50.5 | 27.75 | 3 | 2 |
GOST-5628-50DW* | 3 | 64 | 50 | 50 | 5 | 27.75 | 27.75 | 43.5 | 42.5 | 32.75 | 54.5 | 28.75 | 3 | 3 |
GOST-5630-100DW* | 3 | 75 | 100 | 80 | 6 | 27.75 | 27.75 | 66 | 49.5 | 33.75 | 61.5 | 29.75 | 3 | 4 |
GOST-5633-100DW* | 4 | 100 | 100 | 100 | 9.5 | 29.25 | 29.25 | 65.5 | 56.75 | 37.75 | 70.5 | 31.75 | 4 | 4 |
GOST-5636-100DW* | 4 | 150 | 100 | 100 | 8.5 | 29.25 | 29.25 | 69.25 | 63.75 | 37.75 | 77.5 | 31.75 | 4 | 4 |
GOST-5642-200DW* | 4 | 172 | 200 | 200 | 9.5 | 28.25 | 28.25 | 91 | 71.25 | 37.75 | 85 | 31.75 | 4 | 6 |
GOST-5644-200DW | 4 | 210 | 200 | 200 | 14 | 31.75 | 31.75 | 68.25 | 83.75 | 45.75 | 97.5 | 36.75 | 4 | 6 |
GOST-5648-300DW | 4 | 285 | 300 | 285 | 17.5 | 32.25 | 32.25 | 94.75 | 86.13 | 49.75 | 100 | 39.75 | 4 | 8 |
GOST-5652-300SW | 4 | 397 | 300 | 500 | 15.5 | 37.25 | 37.25 | 92.5 | 104 | 52.75 | 118 | 43.75 | 4 | 10 |
GOST-5654-300DW | • 6 | 487 | 300 | 565 | 15.5 | 38.25 | 38.25 | 88.75 | 117.5 | 53.75 | 138.75 | 44.75 | 4 | 10 |
GOST-5658-500DW | • 6 | 525 | 500 | 500 | 16.5 | 45.25 | 45.25 | 96.25 | 127.5 | 61.75 | 149 | 49.75 | 4 | 10 |
GOST-5662-500DW | • 6 | 598 | 500 | 500 | 17 | 44.75 | 44.75 | 92.25 | 116.25 | 61.75 | 138.5 | 50.75 | 4 | 8 |
GOST-5664-500DW | • 6 | 630 | 500 | 500 | 17 | 44.75 | 44.75 | 81.38 | 132.75 | 61.75 | 154.5 | 50.75 | 4 | 10 |
GOST-5670-500DW | • 6 | 735 | 500 | 500 | 20 | 47.75 | 47.75 | 81.38 | 126.13 | 67.75 | 147.5 | 53.75 | 4 | 8 |
