Oil separators shall be Rockford Industrial Separators as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans.

SPECIFICATIONS

Furnish ____Rockford Model OS-____all-welded ____1/4″ steel separators, ____ g.p.m. intermittent flow, ____” (tapped) (hubbed) inlet and outlet, ____” tapped internal vent connection, ____” tapped oil draw-off connection for adjustable oil draw-off, visible double-wall outside trap seal, non-removable separator screen with easily removable filter screen, removable 3/8″ nonskid diamond treadplate cover(s) for flush-with-floor installation for pedestrian traffic, or reinforced for ____(light)(heavy) traffic, cover(s) secured with stainless steel flat head screws, extra-heavy leakproof gasket. OPEX® Shop Coat coating (resistant to oil, grease and cutting oils) inside and bituminous coating outside.

OPTIONAL FEATURES

Anchor flange, filter media, sediment basket, integral extension, epoxy coating, anodes, coalescing pack. Double-wall construction.

NOTE

For uses requiring the retention and safe disposal of oil and other volatile liquids.

TOTAL/UNCONFINED/UNRESTRICTED/OSHA

Recommended Top Access to be able to observe and clean the entire fluid surface in all chambers down to the bottom of the unit.

LARGER UNITS & DOUBLE_WALL CONSTRUCTION AVAILABLE

* Anchor flange requires 3″ extension.
• 6″ & larger – companion flange connection.

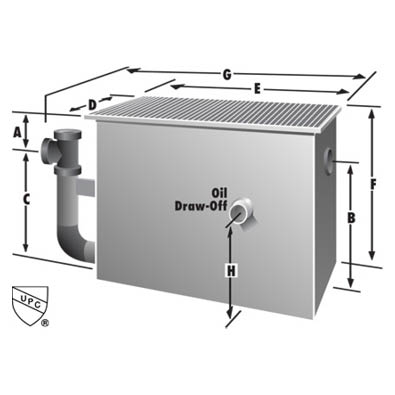

Model Tapped Inlet and Outlet (in.) Static Holding Capacity (gal.) Static Holding Capacity (cu ft.) Top to Center of Outlet A (in.) Bottom to Center of Inlet B (in.) Bottom to Center of Outlet C (in.) Width D (in.) Length E (in.) Height F (in.) Overall Length G (in.) Bottom to Oil Draw Off H (in.) Tapped Oil Draw-off (in) Bottom to Internal Vent (in.) Tapped Internal Vent (in.) Weight (lb.) Covers PDF Specification Drawing CAD Specification Drawing
OS-5624* 2 45 6 4.5 22.5 25.5 18 24 30 34.5 18.5 2 26 3 306 1
