Oil separators shall be Rockford Industrial Separators as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans.
SPECIFICATIONS:
Furnish ____Rockford Model OSL-____DW all-welded DOUBLE WALL 10 Ga. steel separators, ____ g.p.m. intermittent flow, ____" (tapped) (hubbed) inlet and outlet, ____" tapped internal vent connection, ____" tapped oil draw-off connection for adjustable oil draw-off, visible double-wall outside trap seal, non-removable separator screen with easily removable filter screen, removable 3/16" nonskid diamond treadplate cover(s) for flush-with-floor installation for pedestrian traffic, or reinforced for ____(light)(heavy) traffic, cover(s) secured with stainless steel flat head screws, extra-heavy leakproof gasket. OPEX® Shop Coat coating (resistant to oil, grease and cutting oils) inside and bituminous coating outside.
OPTIONAL FEATURES:
Anchor flange, filter media, sediment basket, integral extension, epoxy coating, anodes, coalescing pack.
NOTE:
These are lighter gauge oil separators with double wall construction.
LARGER UNITS AVAILABLE
Call for specifications.
* Anchor flange requires 3" extension.
• 6" & larger – companion flange connection.
+ Length is the distance from inlet to outlet ends.

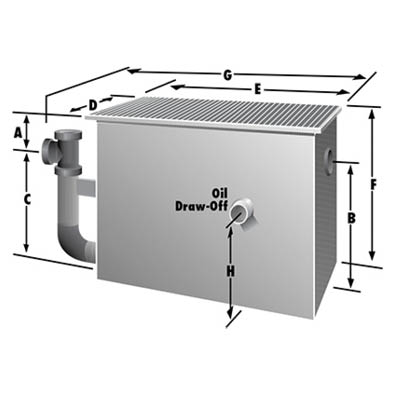

| Model | Inlet/Outlet Size (in.) | Static Holding Capacity (gal.) | Top to Center of Outlet A (in.) | Bottom to Center of Inlet B (in.) | Bottom to Center of Outlet C (in.) | Width D (in.) | Length E (in.) | Height F (in.) | Overall Length G + (in.) | Overall Bottom to Vent (in.) | Vent Size (in.) | Covers |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OS-5010-DW* | 2 | 15 | 4.5 | 14.63 | 13 | 17.25 | 23.25 | 19.13 | 33 | 15.63 | 2 | 1 |
| OS-5615-DW* | 2 | 29 | 4.5 | 18.13 | 16.5 | 21.25 | 27.5 | 22.63 | 37.25 | 18.63 | 3 | 1 |
| OS-5620-DW* | 2 | 40 | 4 | 24.63 | 23 | 21.25 | 27.5 | 28.63 | 37.25 | 25.63 | 2 | 1 |
| OS-5624-DW* | 2 | 45 | 4.5 | 27.13 | 25.5 | 18.25 | 24.25 | 31.63 | 36.5 | 27.63 | 3 | 1 |
| OS-5628-DW* | 3 | 64 | 5 | 27.63 | 26 | 20.25 | 30.25 | 32.63 | 46 | 29.63 | 3 | 1 |
| OS-5630-DW* | 3 | 75 | 6 | 27.63 | 26 | 25.25 | 36.25 | 33.63 | 51.25 | 29.63 | 3 | 1 |
| OS-5633-DW* | 4 | 100 | 9.5 | 28.13 | 26.5 | 30.25 | 40.25 | 37.63 | 55.75 | 31.63 | 4 | 1 |
| OS-5636-DW* | 4 | 150 | 8.5 | 29.13 | 27.5 | 36.25 | 45.25 | 37.63 | 62.5 | 31.65 | 4 | 2 |
| OS-5642-DW* | 4 | 172 | 9.5 | 28.13 | 26.5 | 36.25 | 49.75 | 37.63 | 65.25 | 31.63 | 4 | 2 |
| OS-5644-DW | 4 | 210 | 14 | 31.63 | 30 | 36.25 | 57.25 | 45.63 | 72.75 | 36.63 | 4 | 2 |
| OS-5648-DW | 4 | 285 | 17.5 | 32.13 | 30.5 | 40.25 | 64.5 | 49.63 | 81 | 39.63 | 4 | 3 |
| OS-5652-DW | 4 | 397 | 15.5 | 37.13 | 35.5 | 45.25 | 64.5 | 52.63 | 81.5 | 43.63 | 4 | 3 |
| OS-5654-DW | • 6 | 487 | 15.5 | 38.13 | 36.5 | 45.25 | 70.5 | 53.63 | 95.5 | 44.63 | 4 | 3 |
| OS-5658-DW | • 6 | 525 | 16.5 | 45.13 | 43.5 | 45.25 | 76.5 | 61.63 | 101.5 | 49.63 | 4 | 3 |
| OS-5662-DW | • 6 | 598 | 17 | 44.63 | 43 | 45.25 | 83.25 | 61.63 | 108.25 | 50.63 | 4 | 3 |
| OS-5664-DW | • 6 | 630 | 17 | 44.63 | 43 | 45.25 | 94.5 | 61.63 | 119.5 | 50.63 | 4 | 3 |
| OS-5670-DW | • 6 | 735 | 20 | 47.63 | 46 | 45.25 | 94.5 | 67.63 | 119.5 | 53.63 | 4 | 3 |
