RLSW Series Lint Separator

Lint separators shall be Rockford Lint Separators as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans.



SPECIFICATIONS:
Furnish ______Rockford Model RLSW-______ all-welded 10 gauge steel separators ______" tapped inlet and outlet with tapped ______" internal vent connection, visible double-wall outside trap seal, easily removable stainless steel filter for cleaning, removable 3/16" nonskid diamond treadplate cover(s) for flush-with-floor installation suitable for pedestrian traffic, sealed with heavy-duty leakproof gasket, secured with stainless steel flat head screws, OPEX® Shop Coat coating inside and bituminous coating outside for flush-with-floor installation.



OPTIONAL FEATURES:
OPEX® Shop Coat coating outside for on-the-floor installation, aluminum cover, anchor flange with or without clamping ring, integral extension to grade, epoxy coating, all stainless steel construction, double-wall construction. Cover(s) fastened with stainless steel vandal-proof bolts. Contact our Engineering Department.



NOTE:
These are economy series lint separators



LARGER UNITS & DOUBLE-WALL CONSTRUCTION AVAILABLE

* Anchor flange requires 3" extension.
• 6" & larger – companion flange connection.

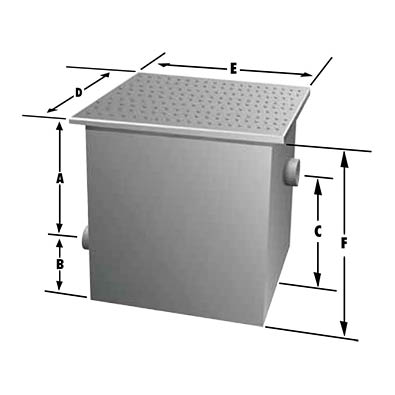

Model Number of Machines Inlet/Outlet Size (in.) Top to Center of Outlet A (in.) Bottom to Center of Outlet B (in.) Bottom to Center of Inlet C (in.) Width D (in.) Length E (in.) Height F (in.) Shipping Weight (lb.) PDF Specification Drawing CAD Specification Drawing
RLSW-10 1 2 10 10 3 14 14 13 45
RLSW-30 3 2 13 13 3 17 17 16 75
RLSW-70 7 3 17 16 3 25 25 20 240
RLSW-100 10 4 24 23.5 4 33 33 28 298
RLSW-200 20 4 31 30.5 4 40 40 35 432
RLSW-300 30 6 35 34.5 5 45 45 40 567
RLSW-400 40 6 38 37.5 5 48 48 43 663
RLSW-500 50 6 42 41.5 5 52 52 47 793
