Grease separators shall be Rockford Separators as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans.
SPECIFICATIONS:
Furnish ______ Rockford Model RTO-______ all-welded steel separator for on-the-floor, partially recessed, or flush-with-floor installation with ______ g.p.m. intermittent flow and ______ lbs. greasy sludge capacity, visible double-wall outside trap seal, removable filter screen, non-skid gasketed cover suitable for pedestrian traffic and secured with stainless steel bolts, two steel plugs and coated with enamel coating inside and outside.
NOTE:
These have three outlet locations (M, L, R) for ease of installation and are designed for on-the-floor or flush-with-floor applications
NOTE:
All body vents are 2.00" IPS.
No Optional Features Available.
| Model |
Intermittent Flow GPM |
Tapped Inlet and Outlet (in.) |
Static Holding Capacity (gal.) |
Greasy Sludge Capacity (lb.) |

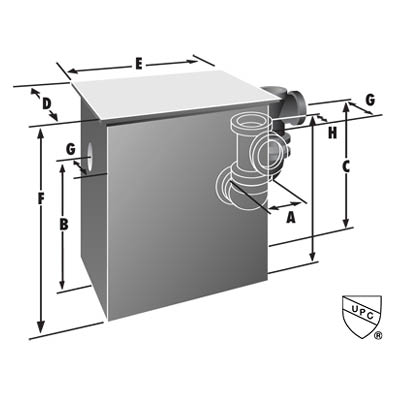

End to Opt. Outlet A (in.) |
Bottom to Center of Inlet B (in.) |
Bottom to Center of Outlet C (in.) |
Width D (in.) |
Length E (in.) |
Height F (in.) |
Front to Inlet/Outlet G (in.) |
Front to Vent Center H (in.) |
Bottom to Vent Center I (in.) |
Shipping Weight (lb.) |
PDF Specification Drawing |
CAD Specification Drawing |
| RTO-5 |
5 |
1.5 |
1.7 |
9 |
- |
5.5 |
7.5 |
9 |
12 |
9 |
4.5 |
- |
- |
21 |
|
|
| RTO-8 |
8 |
1.5 |
3.5 |
18 |
3.38 |
7.63 |
9.63 |
11 |
13 |
11.5 |
5.5 |
- |
- |
35 |
|
|
| RTO-12 |
12 |
2 |
5.3 |
27 |
3.63 |
8.38 |
10.75 |
13 |
15.5 |
13 |
6.5 |
- |
- |
50 |
|
|
| RTO-16 |
16 |
2 |
10 |
50 |
4.38 |
11 |
13.75 |
13 |
21.25 |
16.25 |
6.5 |
- |
- |
70 |
|
|
| RTO-20 |
20 |
2 |
17 |
86 |
4.63 |
12 |
15 |
17 |
23 |
17.5 |
8.5 |
- |
- |
92 |
|
|
| RTO-30 |
30 |
3 |
31 |
156 |
4.88 |
14.5 |
17.88 |
21 |
27.25 |
21 |
10.5 |
- |
- |
148 |
|
|
| RTO-35 |
35 |
3 |
40 |
202 |
4.88 |
16.5 |
21 |
21 |
27.25 |
27 |
10.5 |
5.88 |
23.75 |
160 |
|
|
| RTO-40 |
40 |
4 |
54 |
272 |
7.38 |
21.5 |
25.75 |
23 |
29 |
31 |
11.5 |
6.38 |
27 |
197 |
|
|
| RTO-50 |
50 |
4 |
60 |
302 |
7.38 |
21.5 |
25.75 |
23 |
32.25 |
31 |
11.5 |
6.38 |
27 |
216 |
|
|
| RTO-60 |
60 |
4 |
67 |
338 |
11.38 |
21.5 |
25.25 |
23 |
35.75 |
31 |
11.5 |
6.38 |
27 |
230 |
|
|
| RTO-75 |
75 |
4 |
80 |
403 |
11.38 |
22 |
26.25 |
25.5 |
35.75 |
31 |
12.75 |
6.38 |
27 |
246 |
|
|
| RTO-100 |
100 |
4 |
110 |
554 |
11.38 |
22 |
26.25 |
32.75 |
38.25 |
31 |
16.38 |
8.38 |
27 |
290 |
|
|
| RTO-16-LO |
16 |
2 |
10 |
50 |
3.63 |
6 |
8.75 |
17 |
23 |
10.63 |
8.5 |
- |
- |
73 |
|
|
| RTO-20-LO |
20 |
2 |
21 |
106 |
7.38 |
6.5 |
10.25 |
23 |
29 |
13.25 |
11.5 |
- |
- |
109 |
|
|
| RTO-30-LO |
30 |
3 |
23 |
115 |
7.38 |
6.5 |
10.25 |
23 |
33 |
13.25 |
11.5 |
- |
- |
130 |
|
|
| RTO-40-LO |
40 |
3 |
37 |
186 |
11.38 |
6.75 |
11 |
23 |
47.25 |
16 |
11.5 |
6.38 |
12.5 |
173 |
|
|
| RTO-50-LO |
50 |
3 |
41 |
207 |
11.38 |
6.75 |
11 |
23 |
52.25 |
16 |
11.5 |
6.38 |
12.5 |
190 |
|
|
