RLS Series Lint Separator

Light Duty Commercial Lint Separators shall be Rockford Lint Separators as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans.



SPECIFICATIONS:
Furnish ______Rockford Model RLS-______ all-welded 10 gauge steel separators ______" tapped inlet and outlet with tapped ______" internal vent connection, visible double-wall outside trap seal, easily removable stainless steel filter for cleaning, removable 3/8" nonskid diamond treadplate cover(s) for flush-with-floor installation suitable for pedestrian traffic, sealed with heavy-duty leakproof gasket, secured with stainless steel flat head screws, OPEX® Shop Coat coating inside and bituminous coating outside for flush-with-floor installation.



OPTIONAL FEATURES:
OPEX® Shop Coat coating outside for on-the-floor installation, aluminum cover, anchor flange with or without clamping ring, integral extension to grade, epoxy coating, all stainless steel construction, double-wall construction. Cover(s) fastened with stainless steel vandal-proof bolts. Contact our Engineering Department.



LARGER UNITS & DOUBLE-WALL CONSTRUCTION AVAILABLE

* Anchor flange requies 3" extension.
• Stainless steel units are available.
* Install per your local code.

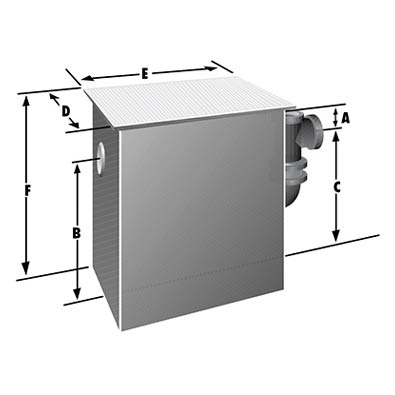

Model Intermittent Flow GPM Inlet/Outlet Size (in.) Static Holding Capacity (gal.) Top to Center of Outlet A (in.) Bottom to Center of Inlet B (in.) Bottom to Center of Outlet C (in.) Width D (in.) Length E (in.) Height F (in.) Overall Length G (in.) Bottom to Vent (in.) Vent Size (in.) Covers PDF Specification Drawing CAD Specification Drawing
RLS-1815 10 2 10 6.25 13.75 13.75 13 21.25 20 26.63 17 2 1
RLS-1820 20 2 20 6.5 17.5 17.5 17 23 24 28.63 18.5 2 1
RLS-2420 30 3 30 9.12 17.88 17.88 21 27.25 27 35.5 24 2 1
RLS-2635* 40 3 40 7 24 24 21 27.25 31 35.5 25.5 2 1
RLS-2824* 50 4 50 6.75 24.25 24.25 23 29 31 38.68 27 2 1
RLS-3050* 60 4 60 5.25 25.75 25.75 23 32.25 31 41.75 27 2 1
RLS-3224* 70 4 70 5.25 25.75 25.75 23 35.75 31 45.25 27 2 1
RLS-3475* 80 4 80 7 27 27 25.5 35.75 34 45.25 28 2 1
RLS-3628* 100 4 110 7.75 26.25 26.25 32.75 38.25 34 47.75 28 2 1
