GOST Series Oil Separator

Oil separators shall be Rockford Separators as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans.



SPECIFICATIONS:
Furnish ____Rockford Model GOST-____-____gallon integral storage compartment, all-welded ____ 1/4" steel separators, ____g.p.m. intermittent flow ____"(tapped) (hubbed) inlet and outlet, ____" tapped internal vent connection ____" adjustable oil draw-off, visible double-wall outside trap seal, non-removable separator screen with easily removable filter screen, removable 3/8" nonskid diamond treadplate cover(s) for flush-with-floor installation for pedestrian traffic, or reinforced for ____ (light) (heavy) traffic, cover(s) secured with stainless steel flat head screws, extra-heavy leakproof gasket. OPEX® Shop Coat coating (resistant to oil, grease and cutting oils) inside and bituminous coating outside.



OPTIONAL FEATURES:
Anchor flange, filter media, sediment basket, integral extension, acid-resistant epoxy coating, anodes, coalescing pack, high level sensor and alarm, double-wall construction, with or without leak detection.



NOTE:
These are oil separators with an integral storage compartment.



TOTAL/UNCONFINED/UNRESTRICTED/OSHA
Recommended Top Access to be able to observe and clean the entire fluid surface in all chambers down to the bottom of the unit.



Call for specifications.
* Anchor flange requires 3" extension.
• 6" & larger – companion flange connection.
+ Length is the distance from inlet to outlet ends.
† Any smaller size storage compartment may be ordered P.O.A

Example: GOST-5636 (Model No.) – 50 (Oil Storage)
Standard storage supplied unless specified otherwise.

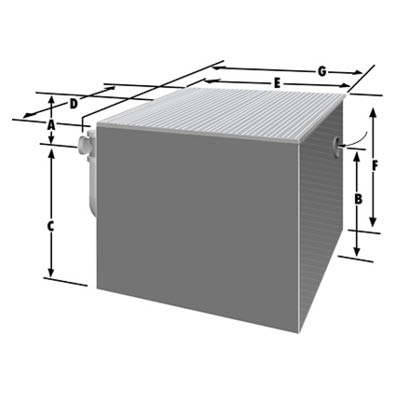

Model Tapped Inlet and Outlet (in.) Static Holding Capacity (gal.) Oil Storage (gal.) Sand Storage Holding Capacity (gal.) Top to Center of Outlet A (in.) Bottom to Center of Inlet B (in.) Bottom to Center of Outlet C (in.) Width D (in.) Length E (in.) Height F (in.) Overall Length G + (in.) Overall Bottom to Vent (in.) Vent Size (in.) Covers PDF Specification Drawing CAD Specification Drawing
GOST-5624* 2 45 50 71 4.5 22.5 25.5 46 41.25 30 50 26 3 2
GOST-5628* 3 64 50 50 5 26 26 43 42 31 54 27 3 3
GOST-5630* 3 75 100 80 6 26 26 65.5 49 32 61 28 3 4
GOST-5633* 4 100 100 100 9.5 27 26.5 65 56.25 36 70 30 4 4
GOST-5636* 4 150 100 100 8.5 27.5 27.5 68.75 63.25 36 77 30 4 4
GOST-5642* 4 172 200 200 9.5 26 26.5 90.5 70.75 36 84 30 4 6
GOST-5644 4 210 200 200 14 30 30 67.75 83.2 44 97 35 4 6
GOST-5648 4 285 300 285 17.5 30 30.5 91.25 85.63 48 99 38 4 8
GOST-5652 4 397 300 500 15.5 35 35.5 92 103 51 117 42 4 10
GOST-5654 • 6 487 300 565 15.5 36 36.5 88.25 117 52 138.25 43 4 10
GOST-5658 • 6 525 500 500 16.5 43 43.5 95.75 127 60 148 48 4 10
GOST-5662 • 6 598 500 500 17 43 43 91.75 115.75 60 138 49 4 8
GOST-5664 • 6 630 500 500 17 43 43 80.88 132.25 60 154 49 4 10
GOST-5670 • 6 735 500 500 20 46 46 80.88 125.63 66 147 52 4 8
